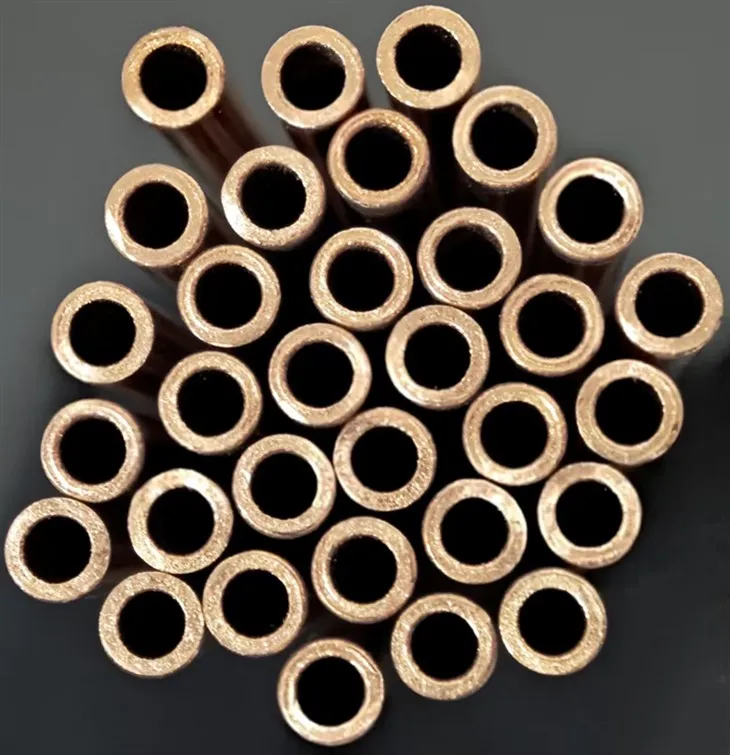

Soft-State TP2 Copper Capillary Straight Tube
Easy to Bend and Install in Tight Spaces
Our Soft-State TP2 Copper Capillary Straight Tube is fully annealed. This makes it very soft and easy to bend. You can shape it by hand without breaking it. It is perfect for complex piping layouts inside refrigerators and freezers. The soft state also makes welding and flaring simple. You save time during assembly. This tube gives you flexibility without losing quality.
Clean and Precise for Stable Refrigerant Flow
This Soft-State TP2 Copper Capillary Straight Tube has high purity. The copper content is over 99.9%. We use a high-precision cold drawing process. The inner and outer diameter tolerance is ±0.02mm. The inner wall is smooth with no oxide or burrs. This ensures steady refrigerant flow and accurate throttling. Our factory, Xinchang Sancai Machinery, checks every batch. We have 15+ years of experience in making capillary tubes.
Ready for Your Custom Orders with Fast Delivery
You can order this Soft-State TP2 Copper Capillary Straight Tube in many sizes. Outer diameter from 1.8mm to 6.35mm. Inner diameter from 0.3mm to 5.0mm. Wall thickness from 0.4mm to 1.3mm. We offer custom cutting, flaring, and polishing. Need a sample? We deliver in 48 hours. Small batch orders take 7-15 days. MOQ is 50-500kg. We support FOB Shanghai/Ningbo. Our 1-year warranty gives you peace of mind.
Product Specifications Table
|
Parameter |
Value / Range |
|
Material |
TP2 (C12200) Red Copper |
|
Copper Content |
≥99.9% |
|
Temper |
Soft (O60) |
|
Tensile Strength |
Rm ≥ 205MPa |
|
Elongation |
A ≥ 40% |
|
Hardness |
HV 30~70 |
|
OD Range |
1.8mm ~ 6.35mm |
|
ID Range |
0.3mm ~ 5.0mm |
|
Wall Thickness |
0.4mm ~ 1.3mm |
|
Tolerance |
±0.02mm |
|
Working Temp |
-40°C ~ +150°C |
|
Refrigerants |
R22, R134a, R410A, R32, R404A |
