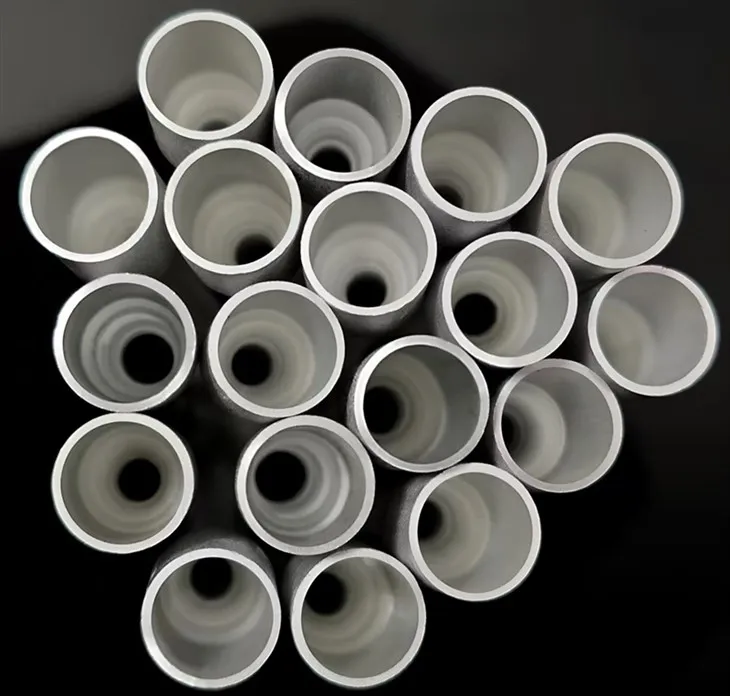

Flared 3003 Aluminum Capillary Tube
Lightweight and Easy to Handle

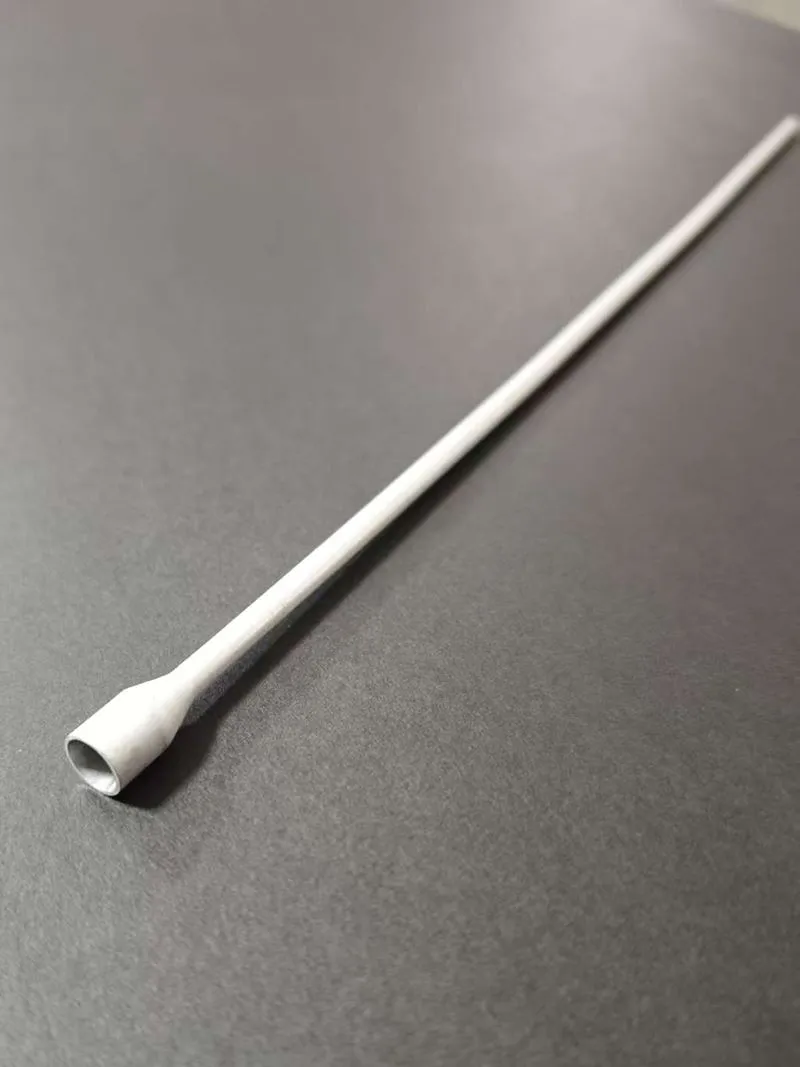

Our Flared 3003 Aluminum Capillary Tube is made from 3003 aluminum alloy. It is very light. The density is only one third of copper. This makes it easy to carry and install. The flared end is smooth with no cracks. It seals well with a nut. This tube is great for refrigeration and AC systems where weight matters.
Good Corrosion Resistance for Long Life
This Flared 3003 Aluminum Capillary Tube has good resistance to moisture and refrigerants. It does not rust or leak. The inner wall is smooth. The tolerance is ±0.015mm. Flow is stable. The working temperature is from -50°C to +180°C. Our factory has 15+ years of experience in aluminum tubes. We test every tube for flare quality and size.
Custom Sizes and Fast Sample
Order this Flared 3003 Aluminum Capillary Tube in outer diameters from 4.0mm to 8.0mm. Inner diameters from 1.0mm to 6.5mm. Wall thickness from 0.5mm to 1.5mm. Available in O, H111, or H14 temper. MOQ is 30-500kg. Sample in 48 hours. Delivery in 15-45 days. We support FOB Shanghai/Ningbo. Contact us for a quote.
Product Specifications Table
|
Parameter |
Value / Range |
|
Material |
3003 Aluminum Alloy |
|
Aluminum Content |
≥99.5% |
|
Temper |
O, H111, H14 |
|
Tensile Strength |
Rm ≥ 110MPa |
|
OD Range |
4.0mm ~ 8.0mm |
|
ID Range |
1.0mm ~ 6.5mm |
|
Wall Thickness |
0.5mm ~ 1.5mm |
|
Tolerance |
±0.015mm |
|
Working Temp |
-50°C ~ +180°C |
|
Refrigerants |
R134a, R410A, R32, R407C, R600a |
