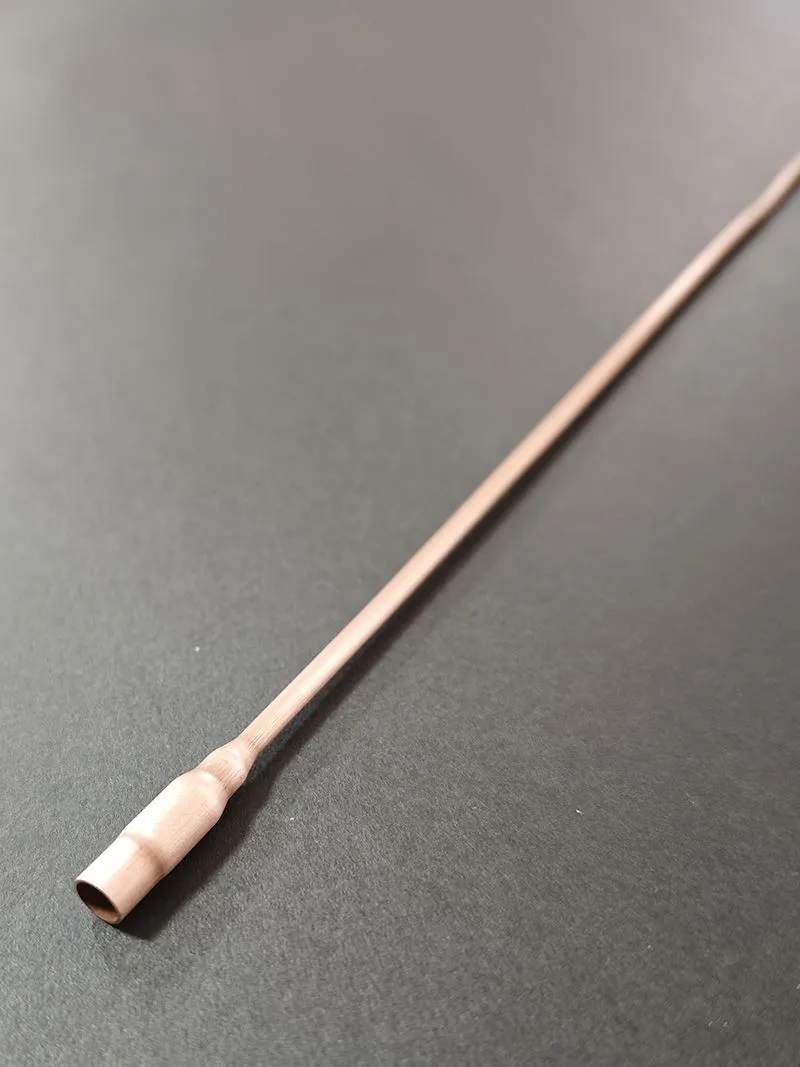

Reducing-expanding TP2 Copper Capillary Tube
One Tube with Flared and Reduced Ends
Our Reducing-expanding TP2 Copper Capillary Tube has a flared end on one side and a reduced end on the other. This gives you both quick connection and easy insertion. It is very useful for complex piping systems. You need fewer parts. Assembly is faster. The transition is smooth with no stress. It works great for air conditioners and chillers.
Precision Made for Reliable Sealing
This Reducing-expanding TP2 Copper Capillary Tube is made from high-purity copper. The copper content is ≥99.9%. The tolerance is ±0.02mm. The inner wall is smooth. The flared end seals well with a nut. The reduced end fits into a tube. No leakage. Our factory inspects every tube. We have 15+ years of experience. You get a high-quality product every time.
Custom Sizes and Quick Turnaround
Order this Reducing-expanding TP2 Copper Capillary Tube in your needed sizes. Outer diameter from 1.8mm to 6.35mm. Inner diameter from 0.3mm to 5.0mm. Wall thickness from 0.5mm to 1.3mm. We offer custom flaring and reducing dimensions. MOQ is 50-500kg. Sample in 48 hours. Delivery in 7-15 days for small batches. Pay by T/T or L/C. Request a quote.
Product Specifications Table
|
Parameter |
Value / Range |
|
Material |
T2 / TP2 Copper |
|
Copper Content |
≥99.9% |
|
End Types |
One flared + one reduced |
|
OD Range |
1.8mm ~ 6.35mm |
|
ID Range |
0.3mm ~ 5.0mm |
|
Wall Thickness |
0.5mm ~ 1.3mm |
|
Temper |
Soft (O60) |
|
Working Temp |
-40°C ~ +150°C |
